SKF
Bearing210 N

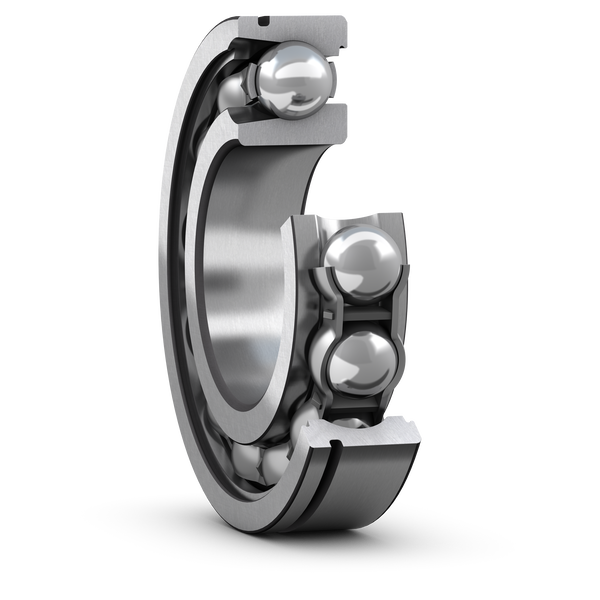

Deep groove ball bearing with filling slots and snap ring groove
Specifications
| Bore (d) | 50.000 mm |
| Outer Diameter (D) | 90.000 mm |
| Width (B) | 20.000 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 39.100 kN |
| Static Load (C₀) | 34.500 kN |
| Speed — Grease | 13,000 RPM |
| Speed — Oil | 8,000 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
Single row deep groove ball bearings with filling slots and a snap ring groove accommodate more balls than standard deep groove ball bearings. They are of a simple, yet versatile, design and are robust in operation, requiring little maintenance. They can accommodate radial and axial loads in both directions. They have a higher radial load carrying capacity than the corresponding bearings without filling slots but have a limited axial load carrying capacity due to the filling slots. An annular groove in the outer ring enables the bearings to retain a snap ring.
