SKF
Bearing23292 CA/C08W33VE554E

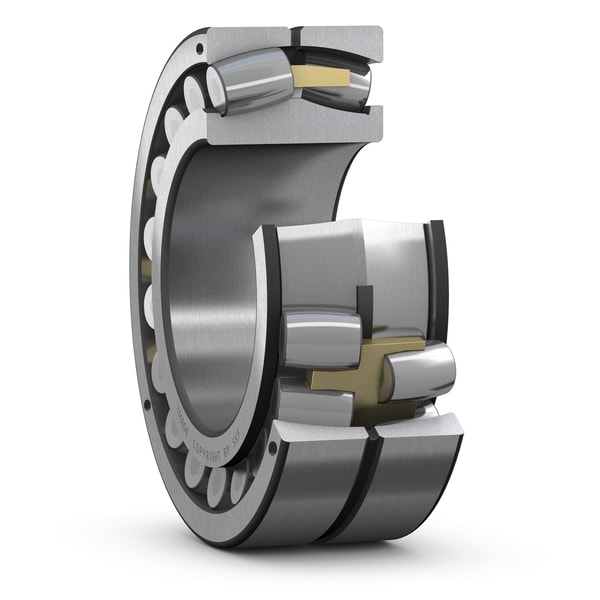

Spherical roller bearing
Specifications
| Bore (d) | 460.000 mm |
| Outer Diameter (D) | 830.000 mm |
| Width (B) | 296.000 mm |
| Seal Type | Open |
| Bearing Type | Spherical Roller |
| Dynamic Load (C) | 8958.000 kN |
| Static Load (C₀) | 13700.000 kN |
| Speed — Grease | 400 RPM |
| Speed — Oil | 560 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. They can be used in a modular system, including housings, sleeves and nuts.
