SKF

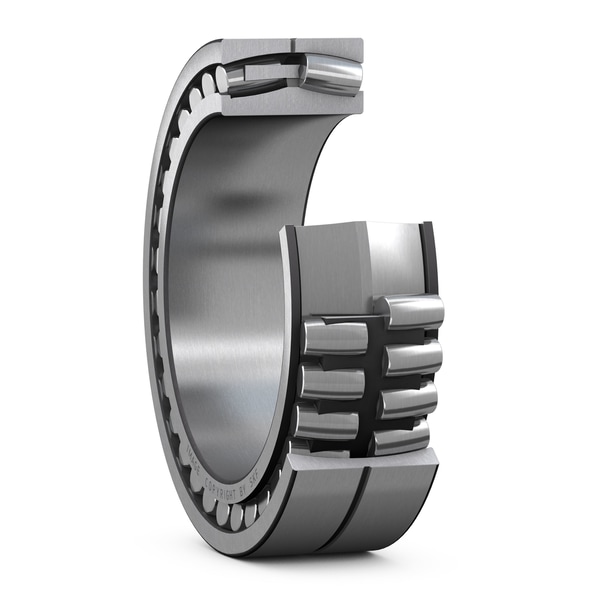

Bearing239/1180 CAF/W33
Spherical roller bearing with relubrication features
Specifications
| Bore (d) | 1180.000 mm |
| Outer Diameter (D) | 1540.000 mm |
| Width (B) | 272.000 mm |
| Seal Type | Open |
| Bearing Type | Spherical Roller |
| Dynamic Load (C) | 13076.000 kN |
| Static Load (C₀) | 31000.000 kN |
| Speed — Grease | 150 RPM |
| Speed — Oil | 300 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. The design includes features to facilitate relubrication. The bearings can be used in a modular system, including housings, sleeves and nuts.
Cross-References(10)
- NSK239/1180 CAF/W33~$2,299.26→
- NTN239/1180 CAF/W33~$2,219.97→
- FAG (Schaeffler)239/1180 CAF/W33~$2,418.19→
- Timken239/1180 CAF/W33~$2,338.90→
- KOYO (JTEKT)239/1180 CAF/W33~$2,180.33→
- INA (Schaeffler)239/1180 CAF/W33~$1,982.12→
- MinebeaMitsumi (NMB)239/1180 CAF/W33~$1,982.12→
- RBC Bearings239/1180 CAF/W33~$1,982.12→
- Peer Bearing239/1180 CAF/W33~$1,982.12→
- Nachi Fujikoshi239/1180 CAF/W33~$1,982.12→
