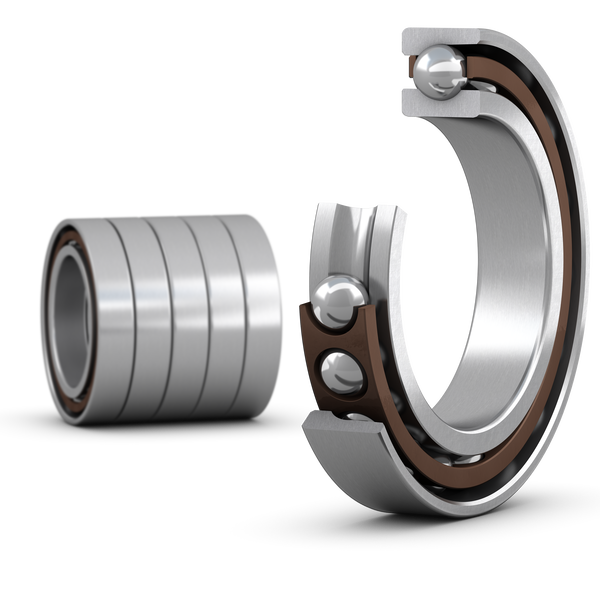

71804 ACD/P4PBCF

Specifications

These sets of five matched super-precision angular contact ball bearings are available as universally matchable bearings or in preconfigured arrangements. Sets of five bearings arranged in tandem need to be mounted against a single bearing, or a set of bearings in tandem, to achieve the desired preload. All the other arrangements are available in different preload classes and correct mounting results in preload within a predetermined range, without the need for shims or similar devices. The bore and outside diameters of the bearings are matched to within a maximum of one-third of the permitted diameter tolerance, to provide better load distribution than single universally matchable bearings.

Cross-References(10)

• NSK71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$23.41→
• NTN71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$22.61→
• FAG (Schaeffler)71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$24.62→
• Timken71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$23.82→
• KOYO (JTEKT)71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$22.20→
• INA (Schaeffler)71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$20.18→
• MinebeaMitsumi (NMB)71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$20.18→
• RBC Bearings71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$20.18→
• Peer Bearing71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$20.18→
• Nachi Fujikoshi71804 ACD/P4PBCF20.000 mm × 32.000 mm × 35.000 mm
  ~$20.18→
