SKF

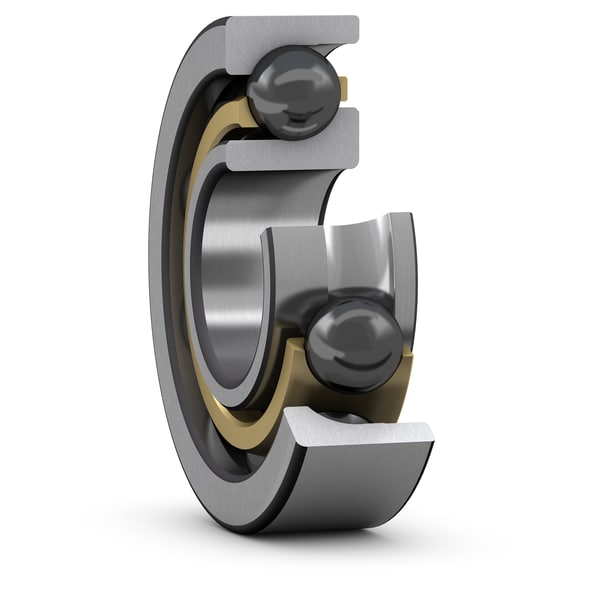

Bearing7310 BECBM/HC5
Single row angular contact ball bearing
Specifications
| Bore (d) | 50.000 mm |
| Outer Diameter (D) | 110.000 mm |
| Width (B) | 27.000 mm |
| Seal Type | Open |
| Bearing Type | Angular Contact |
| Dynamic Load (C) | 68.900 kN |
| Static Load (C₀) | 47.500 kN |
| Speed — Grease | 8,500 RPM |
| Speed — Oil | 10,000 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.
Cross-References(10)
- NSK7310 BECBM/HC5~$40.39→
- NTN7310 BECBM/HC5~$39.00→
- FAG (Schaeffler)7310 BECBM/HC5~$42.48→
- Timken7310 BECBM/HC5~$41.09→
- KOYO (JTEKT)7310 BECBM/HC5~$38.30→
- INA (Schaeffler)7310 BECBM/HC5~$34.82→
- MinebeaMitsumi (NMB)7310 BECBM/HC5~$34.82→
- RBC Bearings7310 BECBM/HC5~$34.82→
- Peer Bearing7310 BECBM/HC5~$34.82→
- Nachi Fujikoshi7310 BECBM/HC5~$34.82→
