SKF
BearingBLRB 365214 F

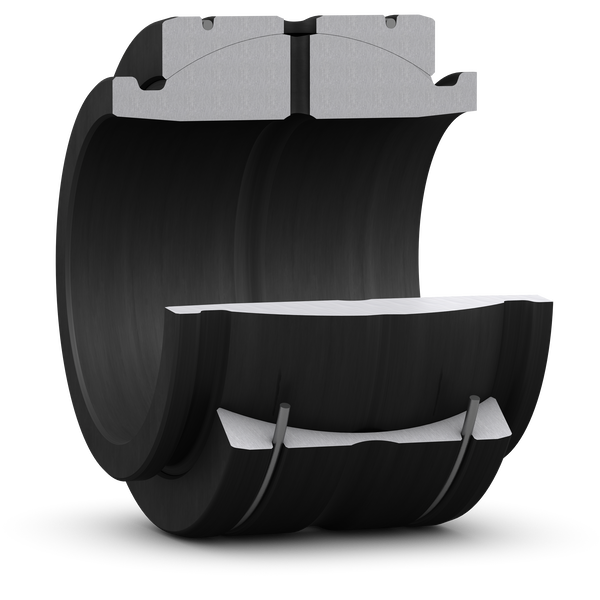

Radial spherical plain bearing, customized design
Specifications
| Bore (d) | 45.000 mm |
| Outer Diameter (D) | 75.000 mm |
| Width (B) | 57.000 mm |
| Seal Type | Open |
| Bearing Type | Spherical Roller |
| Dynamic Load (C) | 280.000 kN |
| Static Load (C₀) | 1400.000 kN |
| Speed — Grease | 11,111 RPM |
| Speed — Oil | 14,889 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. These bearings have a customized design.
