SKF
BearingBT4-8166 E91/C600

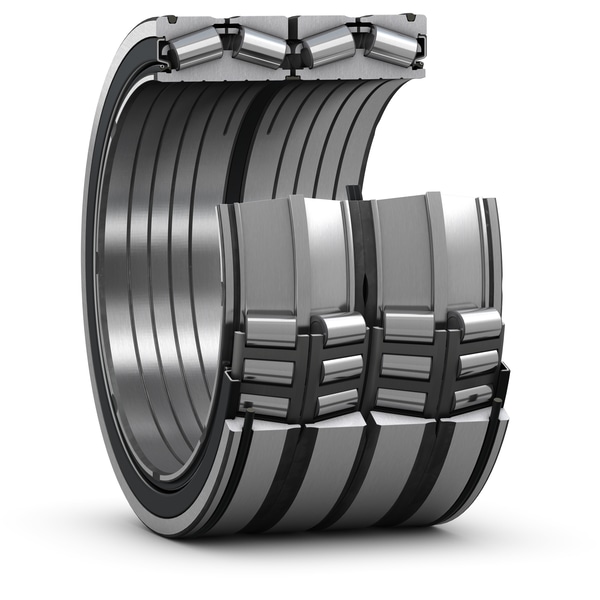

Four-row tapered roller bearing
Specifications
| Bore (d) | 409.575 mm |
| Outer Diameter (D) | 546.100 mm |
| Width (B) | 334.962 mm |
| Seal Type | Open |
| Bearing Type | Tapered Roller |
| Dynamic Load (C) | 5850.000 kN |
| Static Load (C₀) | 12500.000 kN |
| Speed — Grease | 2,000 RPM |
| Speed — Oil | 3,000 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
Four-row tapered roller bearings can accommodate combined heavy radial and axial loads at low to moderate speeds. They are used almost exclusively in work roll applications such as rolling mills. SKF manufactures four-row tapered roller bearings in TQO and TQI designs, in many variants and with different features.
Cross-References(10)
- NSKBT4-8166 E91/C600~$1,066.82→
- NTNBT4-8166 E91/C600~$1,030.03→
- FAG (Schaeffler)BT4-8166 E91/C600~$1,122.00→
- TimkenBT4-8166 E91/C600~$1,085.21→
- KOYO (JTEKT)BT4-8166 E91/C600~$1,011.64→
- INA (Schaeffler)BT4-8166 E91/C600~$919.67→
- MinebeaMitsumi (NMB)BT4-8166 E91/C600~$919.67→
- RBC BearingsBT4-8166 E91/C600~$919.67→
- Peer BearingBT4-8166 E91/C600~$919.67→
- Nachi FujikoshiBT4-8166 E91/C600~$919.67→
