SKF

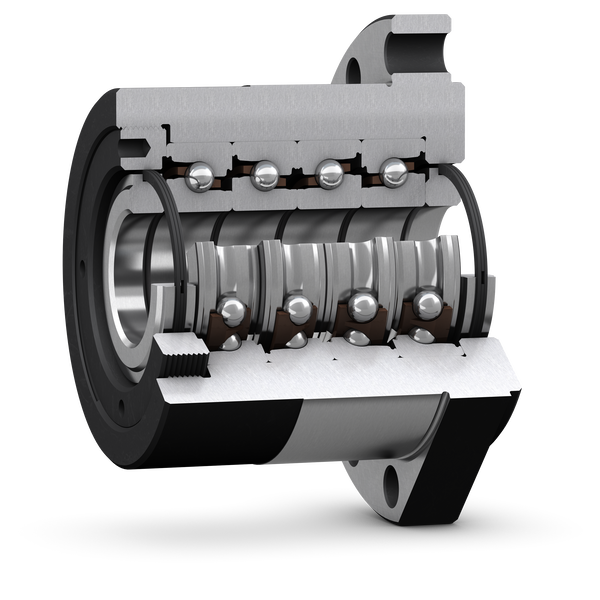

BearingFBSA 206 A/QBCB
Super-precision cartridge units with a flanged housing for screw drives
Specifications
| Bore (d) | 30.000 mm |
| Outer Diameter (D) | 120.000 mm |
| Width (B) | 86.000 mm |
| Seal Type | Open |
| Bearing Type | Angular Contact |
| Dynamic Load (C) | 46.500 kN |
| Static Load (C₀) | 142.000 kN |
| Speed — Grease | 16,667 RPM |
| Speed — Oil | 22,333 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These cartridge units are well suited for screw drive applications. They incorporate a set of four single direction angular contact thrust ball bearings in various arrangements and provide a high degree of axial stiffness, high axial load carrying capacity, and offer high running accuracy. The flanged housing enables quick and easy mounting. The "A" design is a design variant of the flange position.
