SKF

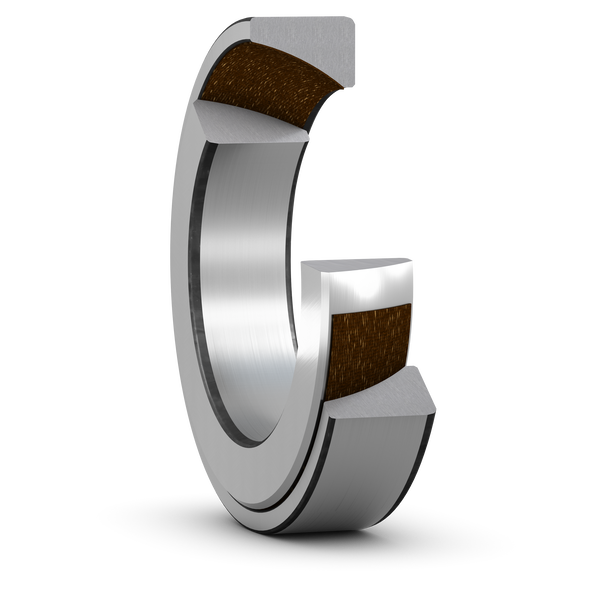

BearingGACD 100 TX
Angular contact spherical plain bearing, maintenance-free, metric sizes
Specifications
| Bore (d) | 100.000 mm |
| Outer Diameter (D) | 150.000 mm |
| Width (B) | 30.000 mm |
| Seal Type | Open |
| Bearing Type | Angular Contact |
| Dynamic Load (C) | 1060.000 kN |
| Static Load (C₀) | 1760.000 kN |
| Speed — Grease | 5,000 RPM |
| Speed — Oil | 6,700 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
Angular contact spherical plain bearings are designed to accommodate combined radial and axial loads. Single bearings can accommodate axial loads acting in one direction. This specific design includes a steel/PTFE fabric sliding contact surface combination that is maintenance-free.
Cross-References(10)
- NSKGACD 100 TX~$194.24→
- NTNGACD 100 TX~$187.54→
- FAG (Schaeffler)GACD 100 TX~$204.29→
- TimkenGACD 100 TX~$197.59→
- KOYO (JTEKT)GACD 100 TX~$184.20→
- INA (Schaeffler)GACD 100 TX~$167.45→
- MinebeaMitsumi (NMB)GACD 100 TX~$167.45→
- RBC BearingsGACD 100 TX~$167.45→
- Peer BearingGACD 100 TX~$167.45→
- Nachi FujikoshiGACD 100 TX~$167.45→
