SKF

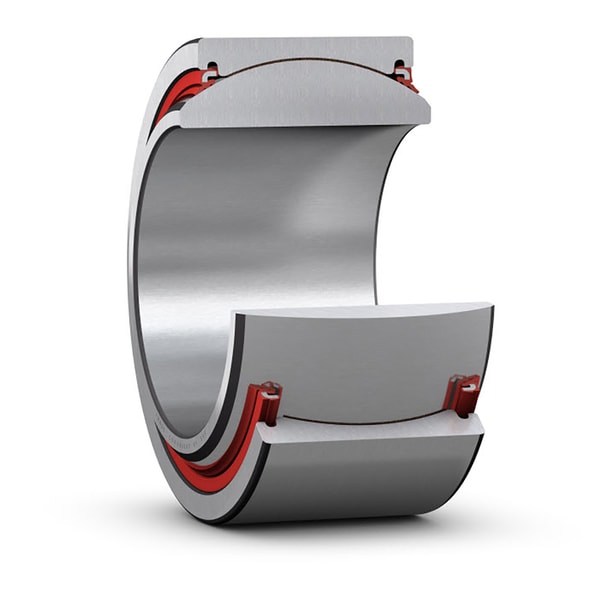

BearingGEZ 100 TXE-2RS
Radial spherical plain bearing, maintenance-free, inch sizes
Specifications
| Bore (d) | 25.400 mm |
| Outer Diameter (D) | 41.275 mm |
| Width (B) | 22.225 mm |
| Seal Type | 2RS (Rubber Seal) |
| Bearing Type | Spherical Roller |
| Dynamic Load (C) | 83.000 kN |
| Static Load (C₀) | 166.000 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/PTFE fabric sliding contact surface combination and the bearings are maintenance-free. They have a triple-lip, heavy duty contact seal on both sides.
