SKF
BearingGEZH 208 ES

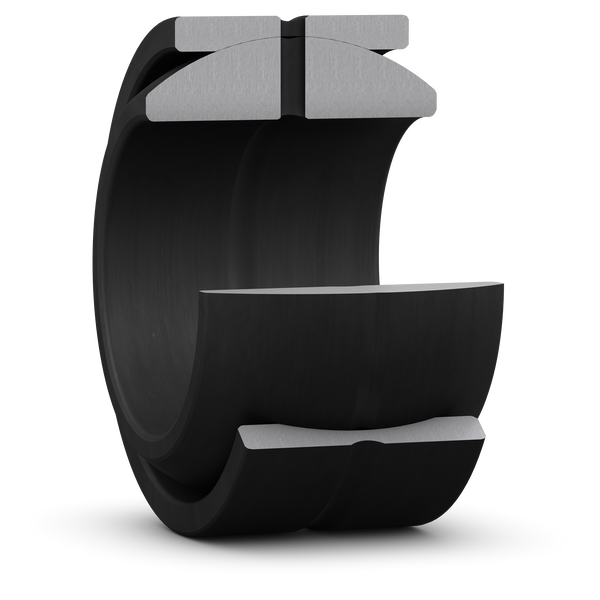

Radial spherical plain bearing
Specifications
| Bore (d) | 63.500 mm |
| Outer Diameter (D) | 111.125 mm |
| Width (B) | 64.643 mm |
| Seal Type | Open |
| Bearing Type | Spherical Roller |
| Dynamic Load (C) | 425.000 kN |
| Static Load (C₀) | 1270.000 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment.
