SKF

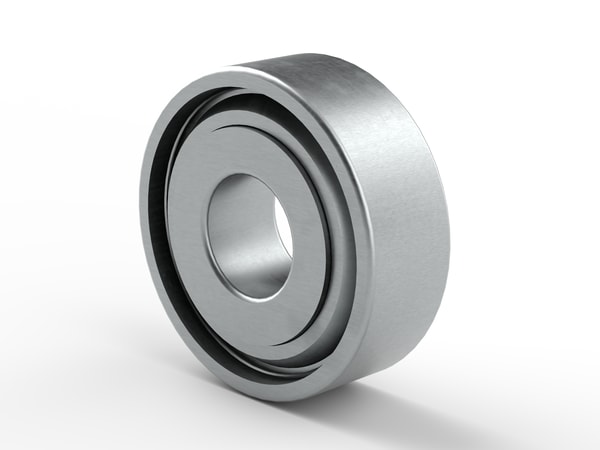

BearingPER.203RRR9
Special ball bearing with integral sealing

Specifications
| Bore (d) | 15.900 mm |
| Outer Diameter (D) | 40.000 mm |
| Width (B) | 12.954 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 9.570 kN |
| Static Load (C₀) | 4.790 kN |
| Speed — Grease | 31,447 RPM |
| Speed — Oil | 42,138 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings with integral sealing are designed mainly for agricultural applications. They have a cylindrical outside surface and a round bore. They accommodate radial loads and are easy to mount. The integral sealing can significantly prolong bearing service life and reduce maintenance efforts.
Cross-References(10)
- NSKPER.203RRR9~$14.89→
- NTNPER.203RRR9~$14.37→
- FAG (Schaeffler)PER.203RRR9~$15.66→
- TimkenPER.203RRR9~$15.14→
- KOYO (JTEKT)PER.203RRR9~$14.12→
- INA (Schaeffler)PER.203RRR9~$12.83→
- MinebeaMitsumi (NMB)PER.203RRR9~$12.83→
- RBC BearingsPER.203RRR9~$12.83→
- Peer BearingPER.203RRR9~$12.83→
- Nachi FujikoshiPER.203RRR9~$12.83→
