SKF
BearingPER.204HYY2

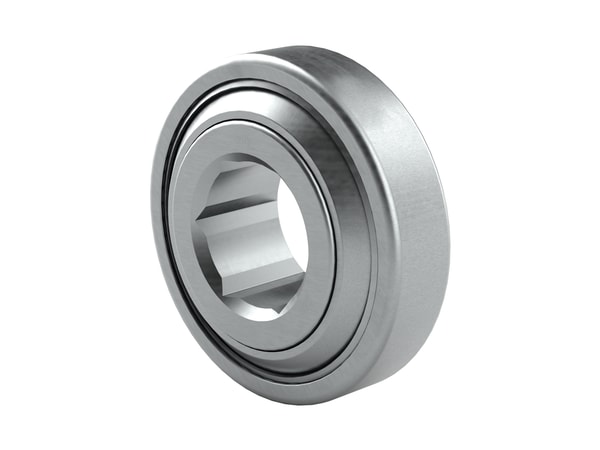

Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals
From ~$20.91at Zoro
Direct checkout is available only for fulfillment-ready partners. Use the supplier link above to purchase this listing or contact us for a verified quote.
Specifications
| Bore (d) | 17.653 mm |
| Outer Diameter (D) | 47.000 mm |
| Width (B) | 21.000 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 12.800 kN |
| Static Load (C₀) | 6.650 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as combine harvesters, balers and planters. The hexagonal bore enables ease of mounting on mating hexagonal shafts. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
