SKF
BearingPER.206HRR52-A

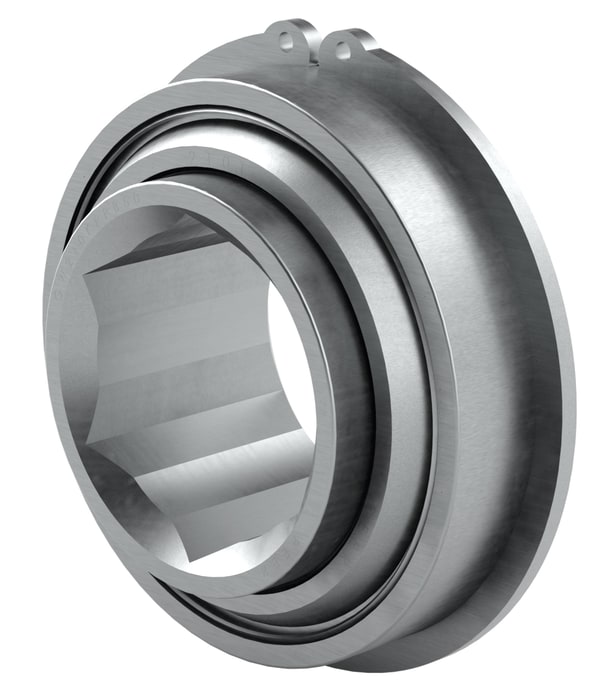

Special ball bearing with hexagonal bore, cylindrical outer surface and high contamination resistant seals
Specifications
| Bore (d) | 22.700 mm |
| Outer Diameter (D) | 62.000 mm |
| Width (B) | 22.000 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 19.500 kN |
| Static Load (C₀) | 11.300 kN |
| Speed — Grease | 22,026 RPM |
| Speed — Oil | 29,515 RPM |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as combine harvesters, balers and planters. The hexagonal bore enables ease of mounting on mating hexagonal shafts. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
Cross-References(10)
- NSKPER.206HRR52-A~$22.30→
- NTNPER.206HRR52-A~$21.53→
- FAG (Schaeffler)PER.206HRR52-A~$23.45→
- TimkenPER.206HRR52-A~$22.68→
- KOYO (JTEKT)PER.206HRR52-A~$21.15→
- INA (Schaeffler)PER.206HRR52-A~$19.22→
- MinebeaMitsumi (NMB)PER.206HRR52-A~$19.22→
- RBC BearingsPER.206HRR52-A~$19.22→
- Peer BearingPER.206HRR52-A~$19.22→
- Nachi FujikoshiPER.206HRR52-A~$19.22→
