SKF
BearingPER.5204RRF57-A

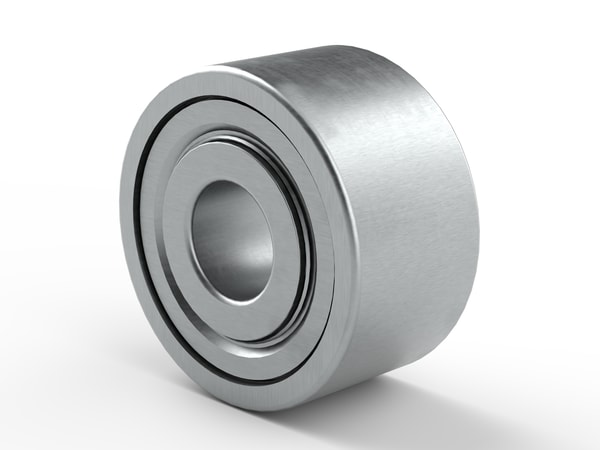

Special double row angular contact ball bearing with round bore, cylindrical outer surface and high contamination resistant seals
Specifications
| Bore (d) | 16.100 mm |
| Outer Diameter (D) | 47.000 mm |
| Width (B) | 24.600 mm |
| Seal Type | Open |
| Bearing Type | Angular Contact |
| Dynamic Load (C) | 15.500 kN |
| Static Load (C₀) | 10.700 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
These special double row angular contact ball bearings are designed mainly for agricultural applications, are commonly used in agricultural seeding equipment, such as grain drills or planters. The integral sealing and higher-than-standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
