SKF

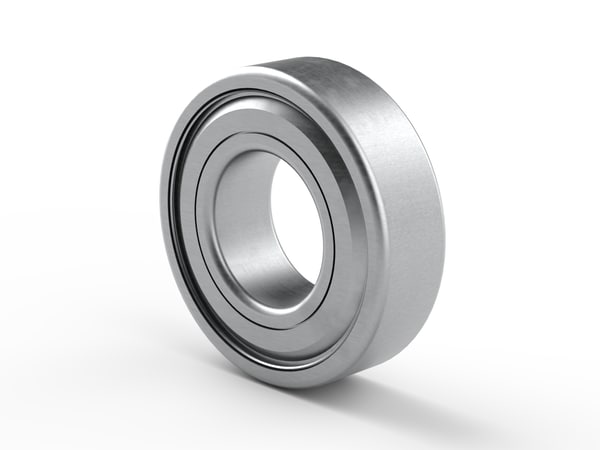

BearingPER.6004-2RSTFPC3F6
Special ball bearing with integral sealing
Specifications
| Bore (d) | 20.000 mm |
| Outer Diameter (D) | 42.000 mm |
| Width (B) | 12.000 mm |
| Seal Type | 2RS (Rubber Seal) |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 9.380 kN |
| Static Load (C₀) | 5.030 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings with integral sealing are designed mainly for agricultural applications. They have a cylindrical outside surface and a round bore. They accommodate radial loads and are easy to mount. The integral sealing can significantly prolong bearing service life and reduce maintenance efforts.
Cross-References(10)
- NSKPER.6004-2RSTFPC3F6~$17.56→
- NTNPER.6004-2RSTFPC3F6~$16.95→
- FAG (Schaeffler)PER.6004-2RSTFPC3F6~$18.47→
- TimkenPER.6004-2RSTFPC3F6~$17.86→
- KOYO (JTEKT)PER.6004-2RSTFPC3F6~$16.65→
- INA (Schaeffler)PER.6004-2RSTFPC3F6~$15.14→
- MinebeaMitsumi (NMB)PER.6004-2RSTFPC3F6~$15.14→
- RBC BearingsPER.6004-2RSTFPC3F6~$15.14→
- Peer BearingPER.6004-2RSTFPC3F6~$15.14→
- Nachi FujikoshiPER.6004-2RSTFPC3F6~$15.14→
