SKF
BearingPER.CF5202RYY8

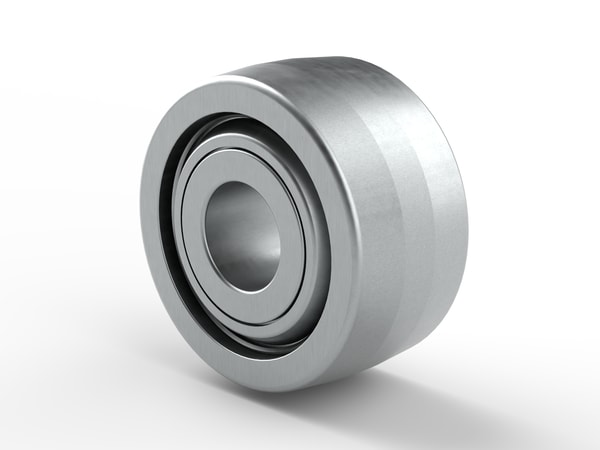

Special double row angular contact ball bearing
Specifications
| Bore (d) | 12.700 mm |
| Outer Diameter (D) | 38.200 mm |
| Width (B) | 15.900 mm |
| Seal Type | Open |
| Bearing Type | Angular Contact |
| Dynamic Load (C) | — |
| Static Load (C₀) | — |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
Double row angular contact ball bearings correspond, in their design and operation, to a pair of single row angular contact ball bearings in a back-to-back arrangement, while requiring less axial space, and are particularly suitable in applications where a stiff bearing arrangement is required. They can accommodate radial loads, axial loads in either direction and tilting moments. They can operate at very high speeds and are more suitable than deep groove ball bearings for supporting large axial forces.
