SKF

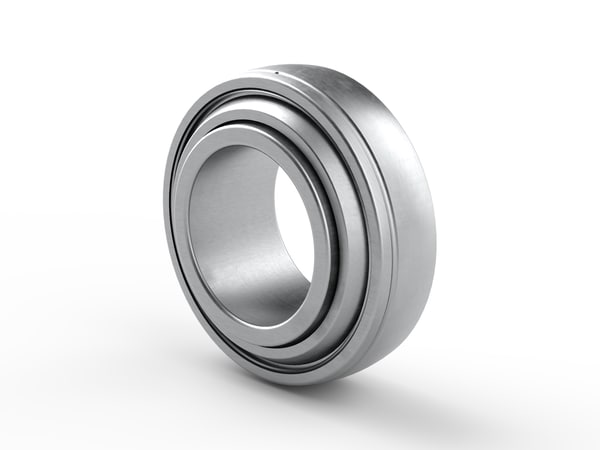

BearingPER.GW209RPPB11-B
Special ball bearing with round bore and high contamination resistant 3-lip seals
Specifications
| Bore (d) | 45.161 mm |
| Outer Diameter (D) | 85.000 mm |
| Width (B) | 36.512 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 32.700 kN |
| Static Load (C₀) | 20.900 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The spherical outside surface accommodates static misalignment when mounted in standard/commercial housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
