SKF

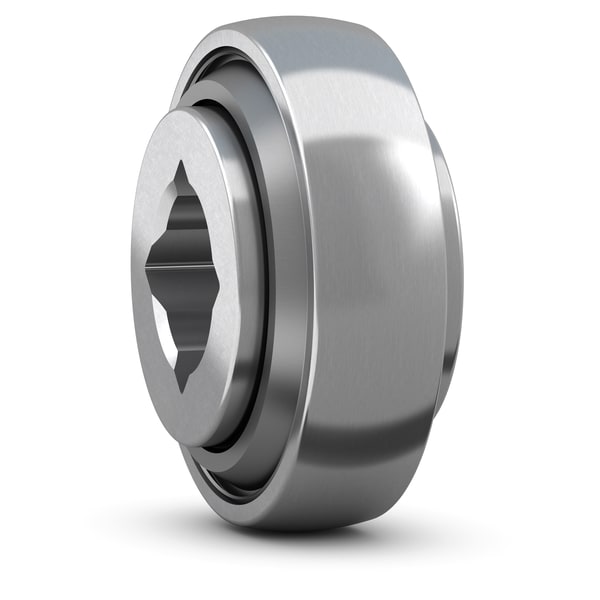

BearingPER.GW209SPPB5
Special ball bearing with square bore, spherical outer surface and high contamination resistant 3-lip seals
Specifications
| Bore (d) | 32.512 mm |
| Outer Diameter (D) | 85.000 mm |
| Width (B) | 36.513 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 32.700 kN |
| Static Load (C₀) | 20.900 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The square bore enables ease of mounting on mating square shafts. The spherical outside surface accommodates static misalignment when mounted in standard/commercial and compatible housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
