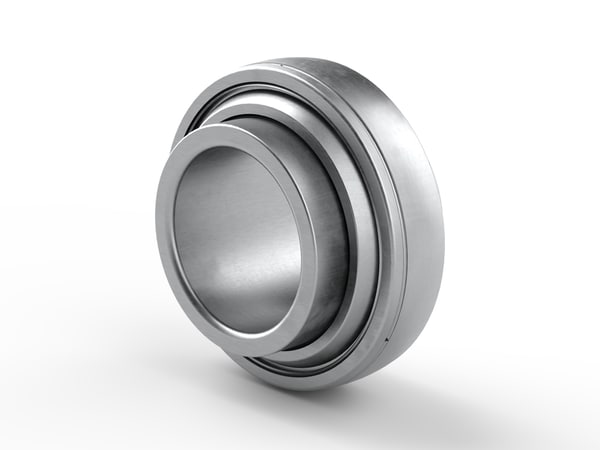

SKF
BearingPER.GW214RPPB6
Special ball bearing with round bore and high contamination resistant 3-lip seals
Specifications
| Bore (d) | 68.278 mm |
| Outer Diameter (D) | 125.000 mm |
| Width (B) | 68.263 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 62.200 kN |
| Static Load (C₀) | 44.200 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The spherical outside surface accommodates static misalignment when mounted in standard/commercial housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
Cross-References(10)
- NSKPER.GW214RPPB6~$59.26→
- NTNPER.GW214RPPB6~$57.22→
- FAG (Schaeffler)PER.GW214RPPB6~$62.33→
- TimkenPER.GW214RPPB6~$60.29→
- KOYO (JTEKT)PER.GW214RPPB6~$56.20→
- INA (Schaeffler)PER.GW214RPPB6~$51.09→
- MinebeaMitsumi (NMB)PER.GW214RPPB6~$51.09→
- RBC BearingsPER.GW214RPPB6~$51.09→
- Peer BearingPER.GW214RPPB6~$51.09→
- Nachi FujikoshiPER.GW214RPPB6~$51.09→
