SKF

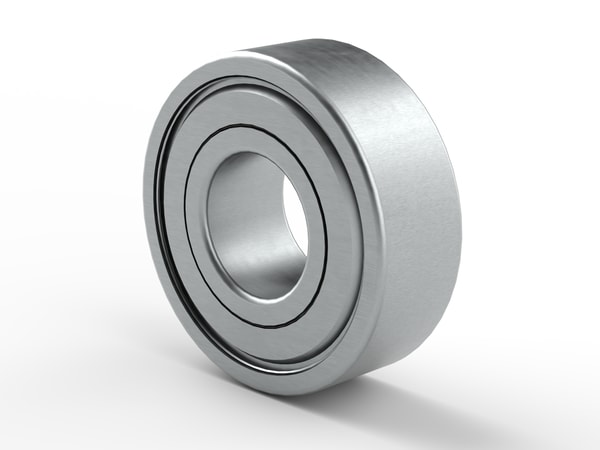

BearingPER.K6203-2RSTFPC3F5-A
Special ball bearing with integral sealing
Specifications
| Bore (d) | 7.100 mm |
| Outer Diameter (D) | 44.450 mm |
| Width (B) | 20.000 mm |
| Seal Type | 2RS (Rubber Seal) |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 9.570 kN |
| Static Load (C₀) | 4.790 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings with integral sealing are designed mainly for agricultural applications. They have a cylindrical outside surface and a round bore. They accommodate radial loads and are easy to mount. The integral sealing can significantly prolong bearing service life and reduce maintenance efforts.
Cross-References(10)
- NSKPER.K6203-2RSTFPC3F5-A~$17.16→
- NTNPER.K6203-2RSTFPC3F5-A~$16.57→
- FAG (Schaeffler)PER.K6203-2RSTFPC3F5-A~$18.05→
- TimkenPER.K6203-2RSTFPC3F5-A~$17.46→
- KOYO (JTEKT)PER.K6203-2RSTFPC3F5-A~$16.28→
- INA (Schaeffler)PER.K6203-2RSTFPC3F5-A~$14.80→
- MinebeaMitsumi (NMB)PER.K6203-2RSTFPC3F5-A~$14.80→
- RBC BearingsPER.K6203-2RSTFPC3F5-A~$14.80→
- Peer BearingPER.K6203-2RSTFPC3F5-A~$14.80→
- Nachi FujikoshiPER.K6203-2RSTFPC3F5-A~$14.80→
