SKF

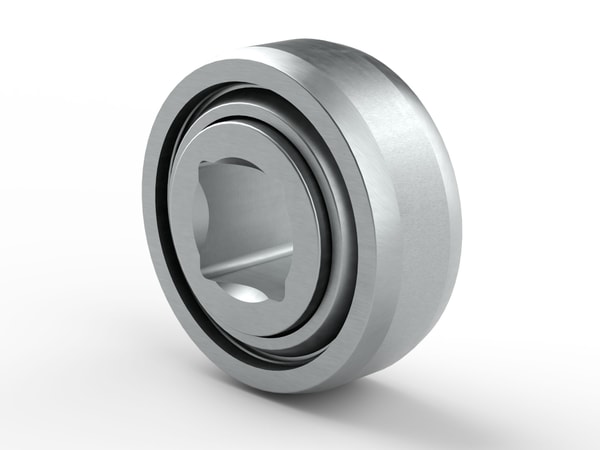

BearingPER.W208SPPB11
Special ball bearing with square bore, cylindrical outer surface and high contamination resistant 3-lip seals
Specifications
| Bore (d) | 22.987 mm |
| Outer Diameter (D) | 85.750 mm |
| Width (B) | 36.512 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 32.600 kN |
| Static Load (C₀) | 20.000 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The square bore enables ease of mounting on mating square shafts. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
