SKF

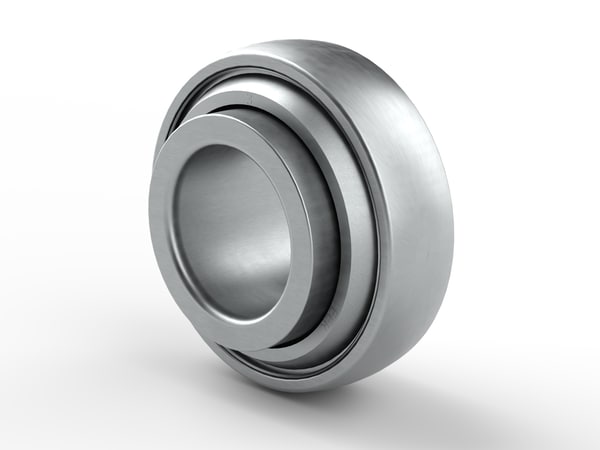

BearingPER.W209RPPB2
Special ball bearing with round bore and high contamination resistant 3-lip seals
Specifications
| Bore (d) | 45.000 mm |
| Outer Diameter (D) | 85.000 mm |
| Width (B) | 30.175 mm |
| Seal Type | Open |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 32.700 kN |
| Static Load (C₀) | 20.900 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
| Clearance | CN/Normal |
These special single row deep groove ball bearings are designed mainly for agricultural applications, such as disc harrows. The spherical outside surface accommodates static misalignment when mounted in standard/commercial housings. The integral sealing and higher than standard grease fill can significantly prolong bearing service life and reduce maintenance efforts.
Cross-References(10)
- NSKPER.W209RPPB2~$33.87→
- NTNPER.W209RPPB2~$32.71→
- FAG (Schaeffler)PER.W209RPPB2~$35.63→
- TimkenPER.W209RPPB2~$34.46→
- KOYO (JTEKT)PER.W209RPPB2~$32.12→
- INA (Schaeffler)PER.W209RPPB2~$29.20→
- MinebeaMitsumi (NMB)PER.W209RPPB2~$29.20→
- RBC BearingsPER.W209RPPB2~$29.20→
- Peer BearingPER.W209RPPB2~$29.20→
- Nachi FujikoshiPER.W209RPPB2~$29.20→
