SKF

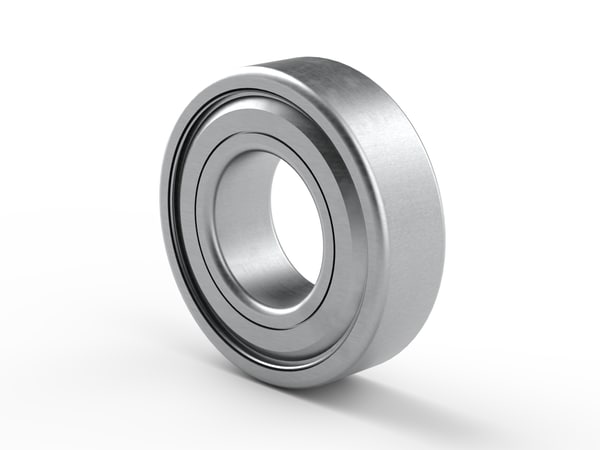

BearingPER.Z9504-2RSTFP
Special ball bearing with integral sealing
Specifications
| Bore (d) | 19.063 mm |
| Outer Diameter (D) | 45.225 mm |
| Width (B) | 15.494 mm |
| Seal Type | 2RS (Rubber Seal) |
| Bearing Type | Deep Groove |
| Dynamic Load (C) | 12.800 kN |
| Static Load (C₀) | 6.580 kN |
| Speed — Grease | — |
| Speed — Oil | — |
| Temperature Range | -30°C to 120°C |
| Rows | 1 |
These special single row deep groove ball bearings with integral sealing are designed mainly for agricultural applications. They have a cylindrical outside surface and a round bore. They accommodate radial loads and are easy to mount. The integral sealing can significantly prolong bearing service life and reduce maintenance efforts.
